Caliper Repair Kit 2M0004
| ENM NO | : | 2M0004 |
| OEM NO | : | - |
| ÜRÜN ADI | : | Caliper Repair Kit |
| UYGULAMA | : | DX 225 |

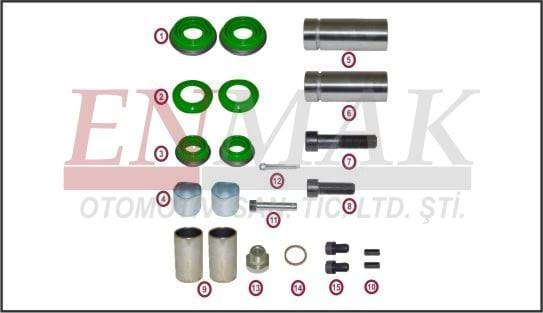

| ENM NO | ÜRÜN ADI | |
| 1 | EK85 | BOOT |
|---|---|---|
| 2 | EK86 | DUST COVER |
| 3 | EK87 | BOOT |
| 4 | ES14 | METAL TAP |
| 5 | ET15 | GUIDE PIN 32*93,50 mm |
| 6 | ET16 | GUIDE PIN 32*93,50 mm |
| 7 | EC1 | SCREW 16*1,5*80 mm |
| 8 | EC11 | SCREW 16*1,5*55 mm |
| 9 | EB7 | BUSH |
| 10 | ES46 | PIN |
| 11 | ET91 | DETENT PIN |
| 12 | ES51 | COTTER PIN |
| 13 | EC16 | SCREW |
| 14 | ES50 | WASHER |
| 15 | EC12 | SCREW 10*20 mm |
